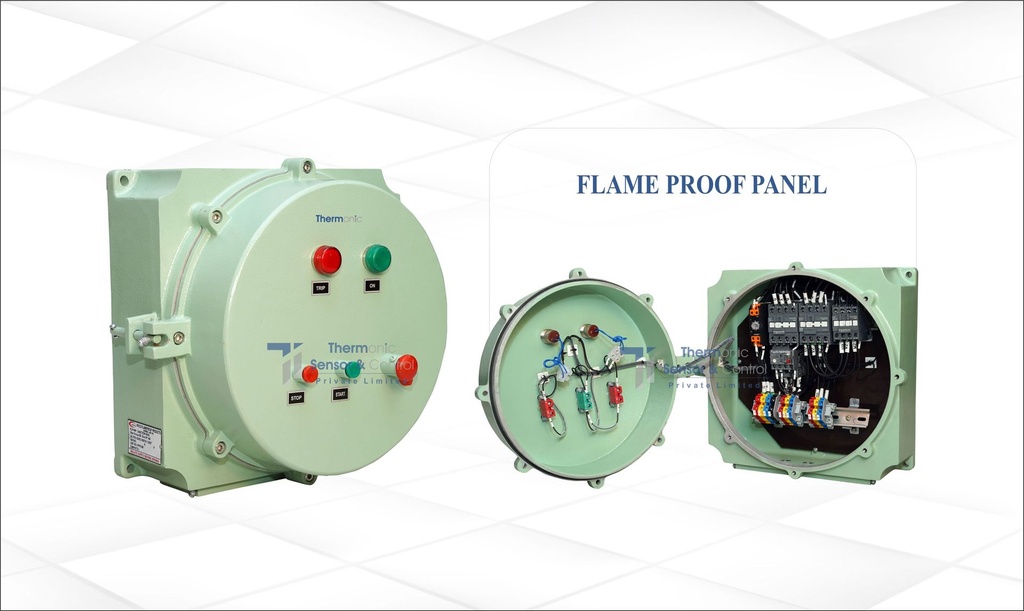

A Thermonic Star-Delta Motor Starter Panel (Flameproof Type)
is designed to safely start and control induction motors in hazardous and
explosive environments. The panel uses a star-delta starting method to reduce
the inrush current during motor starting, ensuring motor protection and system
reliability.
Built with flameproof enclosures certified for hazardous areas, these panels
are suitable for industries where safety against fire and explosion risks is
critical.
Key Benefits of Thermonic Flameproof Star-Delta Panels:
• Flameproof Safety – Certified enclosures for hazardous
zones
• Reduced Inrush Current – Star-delta method ensures safe motor starting
• Motor Protection – Overload, short-circuit, and earth fault protection
• Durability – Heavy-duty construction for industrial environments
• Compliance – Designed as per IS/IEC standards for flameproof equipment
• Customization – Compatible with motors of various HP ratings
Thermonic Flameproof Star-Delta Panels comply with:
• IS/IEC 60079 – Electrical apparatus for explosive gas atmospheres
• IS/IEC 61439 – Low-voltage switchgear and control gear assemblies
• IS 13947 / IEC 60947 – Switchgear & control devices
• PESO/CMRI approvals for flameproof equipment (as applicable)
• Oil & Gas industries
• Petrochemical plants
• Chemical industries
• Pharmaceuticals (hazardous processing areas)
• Mining and explosive handling units
• Any hazardous area requiring flameproof motor starters
Routine Tests:
• Visual & Dimensional Inspection
• Auto/Manual functional verification
• Insulation Resistance & High Voltage Test
• Protection function test (OLR, SC, EF)
• Verification of flameproof enclosure integrity
Type / Special Tests (on request):
• Temperature Rise Test
• Endurance Test for switching operations
• Earth Continuity Test
• Explosion-proof Certification Test (via approved lab)
📑 Documentation & Certification:
• Test Reports
• CMRI/PESO Flameproof Certificates
• Compliance Certificates (IS/IEC)
Thermonic Flameproof Star-Delta Panels are engineered with advanced safety and reliability. We share all engineering documents for client approval before manufacturing.
Documents shared with client:
a) GA Drawing – Panel layout with flameproof enclosure
b) SLD – Motor wiring with star-delta sequence
c) BOM – Switchgear, relays, flameproof devices
d) Certificates – PESO/CMRI flameproof approvals
e) Control Schemes – Auto/Manual operation with safety interlocks
Thermonic Advantages:
✔ Flameproof enclosures certified for hazardous zones
✔ Reliable star-delta starting with motor protection
✔ Engineered for Oil & Gas, Petrochemical & Hazardous industries
✔ Compliance with IS/IEC flameproof and switchgear standards
• Motor Ratings: 5 HP to 200 HP
• Enclosures: Flameproof CMRI/PESO approved, IP55/IP65 protection
• Operation Modes: Auto / Manual / Remote
• Safety Protections: Overload, Short-circuit, Earth Fault, Phase Failure, Under/Over Voltage
• Switchgear Make: Siemens, Schneider, L&T, ABB (as per client preference)
• Integration: PLC/HMI and SCADA (optional)
• Construction: Heavy-duty CRCA with powder coating
• Certificates: PESO/CMRI/ATEX approvals on request
Challenge Thermonic Solution
Risk of explosion in hazardous areas Flameproof enclosures with CMRI/PESO certification
High inrush current during motor starting Star-Delta method reduces inrush current
Motor protection in critical industries Built-in overload, SC, EF, UV/OV protection
Need for compliance with safety standards Panels designed as per IS/IEC and flameproof norms
Durability in harsh environments Heavy-duty flameproof construction with powder coating
⚡ Thermonic Advantage: Safe, durable, and certified Flameproof Star-Delta Panels engineered to protect motors and ensure compliance in hazardous industries.
