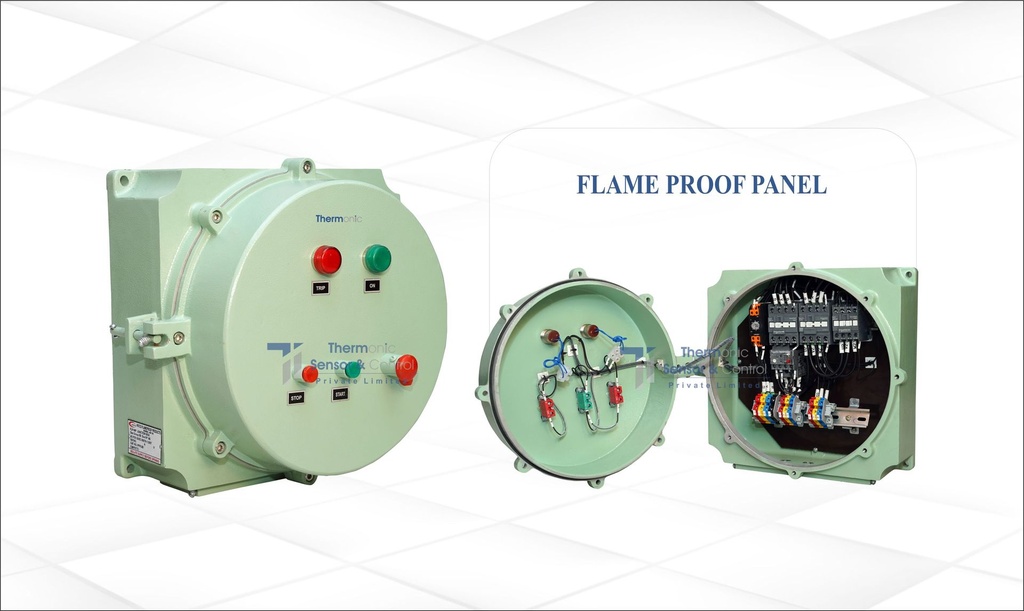

Star-Delta Motor Starter Panel (Flameproof Type)
Motor Control And Starter Panels
Connect With Us
The Thermonic Star-Delta Motor Starter Panel (Flameproof Type) is specially designed for safe starting and control of induction motors installed in hazardous or explosive environments. It operates on a Star-Delta starting principle, which reduces the inrush current at motor start-up and ensures smooth acceleration — protecting both motor and connected equipment.
Constructed with flameproof (FLP) or explosion-proof enclosures certified for Gas Group IIA, IIB, or IIC areas, this panel is ideal for industries such as oil & gas, chemical, paint, refinery, and petrochemical plants. It provides manual and automatic operation, built-in protection, and robust performance even in harsh field conditions.
Thermonic Flameproof Star-Delta Panels are designed and tested to comply with the highest electrical and safety standards:
- 🌐 IS / IEC 60079-1 – Explosive Atmospheres – Flameproof Enclosures
- 🇮🇳 PESO / CMRI / CCOE Certified – For use in Zone 1 & Zone 2 Hazardous Areas
- ⚙️ IS 13947 / IEC 60947 – Switchgear & Controlgear Standards
- 🔰 IEC 61439 / IS 8623 – Low-Voltage Switchgear Assemblies
- 💡 ISO 9001 : 2015 – Certified Manufacturing Process
✅ Complies with Indian Explosive Act Rules and tested for gas group flammability and temperature rise criteria.
Thermonic FLP Star-Delta Panels are ideal for hazardous environments requiring safe and reliable motor operation:
- 🏭 Oil & Gas Plants – Pumps, compressors & ventilation fans.
- 🧪 Chemical & Petrochemical Units – Motor control for flammable process areas.
- ⚙️ Paint, Pharma & Solvent Industries – Mixers and agitators.
- 🏗 Coal Mines & Hazardous Warehouses – Dust-proof and flameproof motor operations.
- 🌆 Refineries & LPG Terminals – Critical motor applications in Zone 1/2 locations.
🔥 Thermonic FLP Star-Delta Panels ensure safe, reliable, and compliant motor starting in hazardous environments.
Every Flameproof Panel undergoes stringent quality and safety checks before dispatch.
✅ Routine Tests:
- 🔍 Visual & Dimensional Inspection
- ⚙️ Functional Test for Star-Delta Sequence & Timing
- 🚨 Overload & Short-Circuit Protection Verification
- ⚡ Insulation Resistance & High Voltage Dielectric Test
- 🔥 FLP Integrity Check & Gasket Sealing Verification
🧪 Special Tests (on Request):
- 🌡 Temperature Rise Test under Full Load
- 🧭 Flameproof Enclosure Pressure & Impact Test
📑 Documentation & Certificates:
- 📄 Routine Test Reports & CMRI/PESO Certificates
- 🎯 Calibration Certificates & GA/SLD Drawings
- 🏗 IS / IEC Compliance Certificates
Thermonic FLP Star-Delta Panels are engineered for reliability, safety, and compliance with complete transparency in design and client approval before production.
🧾 Documents Shared with Client (Before Production):
- 📐 GA Drawing – Layout showing starter, contactor & protection devices
- 🔌 SLD – Control wiring diagram with Star-Delta transition timing
- ⚙️ BOM – Switchgear, contactors, timers, relays & terminal components
- 📘 Technical Notes – FLP construction & safety standards references
- 🧠 Control Scheme – Auto/Manual operation with interlock logic
💡 Thermonic Advantages:
- ⚡ Certified FLP enclosures for Zone 1 / Zone 2 use
- 🚨 Heavy-duty Star-Delta starter with motor protection relays
- 🔗 Integration with PLC / SCADA / Fire Alarm systems
- 🔥 Rugged construction with long-life electrical components
Thermonic Flameproof Star-Delta Panels can be customized to meet project and environmental requirements:
- ⚙️ Motor Capacity – Up to 250 HP (FLP Star-Delta Starter).
- 🧭 Operation Modes – Auto / Manual / Local-Remote selection.
- 🔌 Protection – Overload, short circuit, single phasing, phase reversal, earth fault.
- 🏗 Enclosures – FLP / Ex-d / Ex-p certified for Gas Group IIA, IIB or IIC.
- 🚨 Certificates – CMRI / PESO / ATEX / IECEx (on request).
- 🔗 Integration – Pressure Switch, Level Switch, Temperature Sensor Interface.
🔥 Thermonic Flameproof Star-Delta Panels offer the perfect combination of safety, durability, and performance for hazardous industrial operations.
